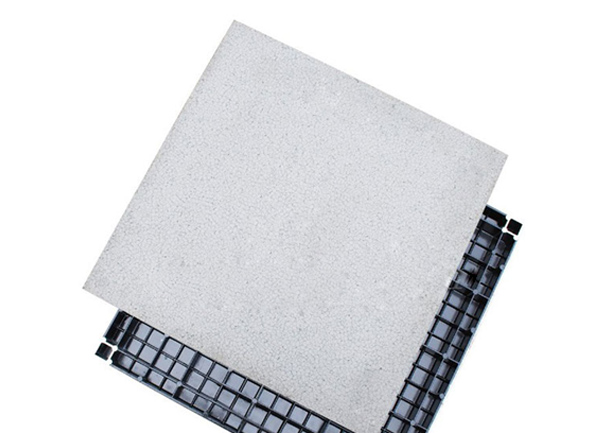

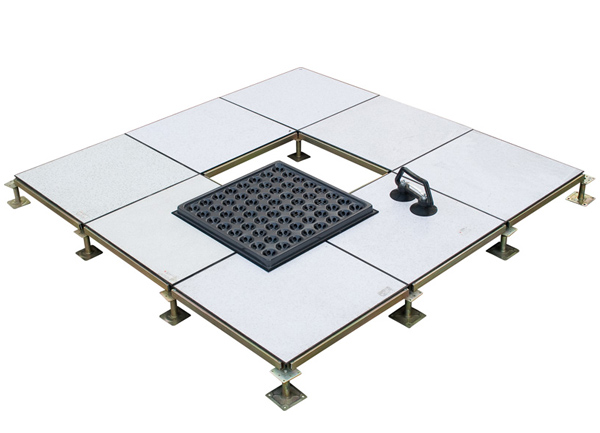

Aluminum alloy elevated raised raised floor

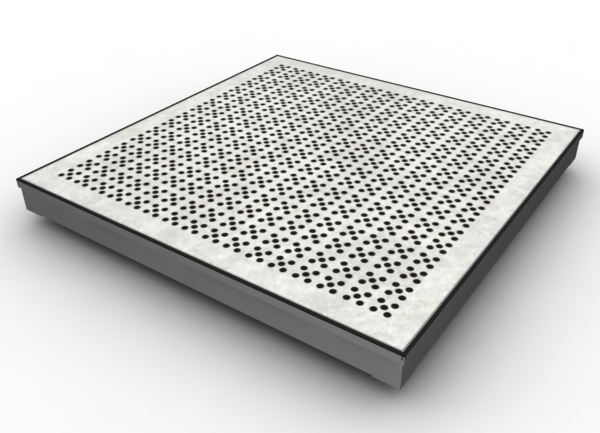

Aluminum alloy anti-static flooring (including aluminum alloy ventilation panels) is completely cast under negative pressure, integrating the corrosion resistance and high strength characteristics of aluminum alloy. It has the characteristics of high dimensional accuracy, conductivity, flame retardancy, high anti magnetic bearing capacity, non deformable surface with electrostatic coating, beautiful appearance, comfortable walking, and never declining performance. Extremely stable in performance, making it the most high-end product in electrostatic flooring. And the assembly is convenient, easy to disassemble and rebuild, and the height can be freely selected and adjusted.
Suitable for various electronic computer rooms and control rooms, as well as high purification level venues.

Product features:
1: Conductive requirements for anti-static adhesive surfaces (10^fiveΏ~ ten^sevenΏ）
2: The requirements for cleanliness when casting aluminum alloy flooring.
3: Dimensional tolerance of aluminum alloy flooring (600 ± 0.2mm)
4: Strength requirements for load resistance of aluminum alloys (ultimate strength: 33360N or above)
5: Requirements for conductive value of adhesive between conductive veneer and aluminum plate (10^fiveΏ~ ten^sevenΏ）
6: Requirements for shockproof crossbeams (above 130kgf)
7: Requirements for special foundations (vertical load of 8.00kgf or above; vertical load of 3.00kgf or above with a foot tilt of 200)
8: Requirements for the resistance value of the conductive gasket on the top of the base (10^fiveΏ- ten^{7 Ω}）
9: Requirements for connection between base and base 1 Ώ
